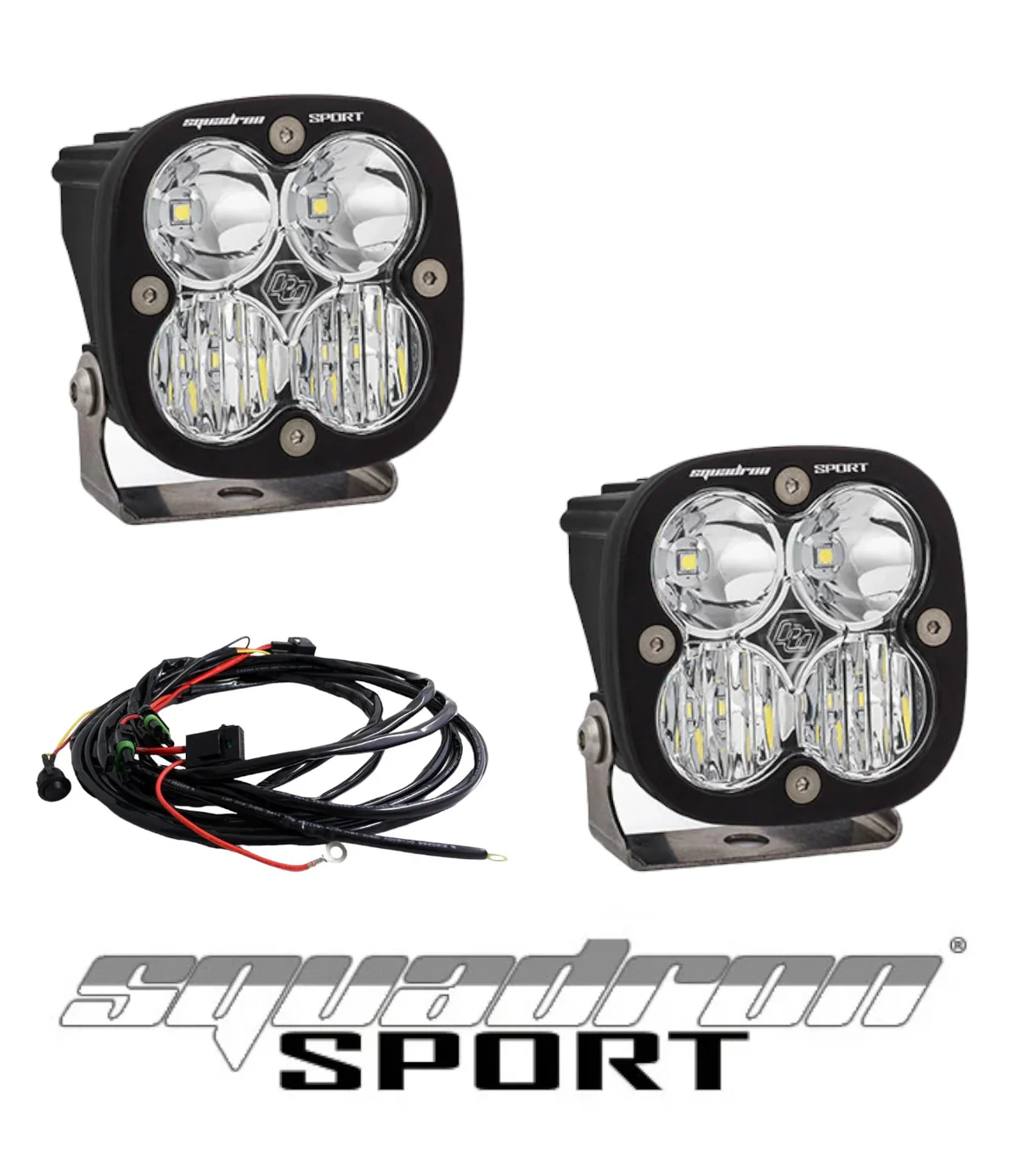

Baja Designs Squadron Sport LED Auxiliary Lights – Black (Pair)

SKU: 2443

Upgrade your auxiliary lighting with the Baja Designs Squadron Sport LED Light Pair, a compact yet powerful solution designed to deliver exceptional performance in a versatile 3-inch form factor. Don’t let the small size fool you—these lights are engineered to provide outstanding brightness, durability, and reliability for adventure bikes, trucks, SUVs, UTVs, and off-road vehicles.

Housed in a sleek black powder-coated aluminum body, the Squadron Sport uses next-generation LED technology to produce 3,162 lumens per light, making it ideal for near-field illumination, side lighting, backup use, and scene lighting.

Performance Overview

• Total Output (Pair): 6,324 lumens

• LED Configuration: 4 × Cree XP-G2 LEDs per light

• Power Consumption: 26W per light

• Optimized for: Near-field, side/backup, and scene lighting

While visually similar to the Squadron® Pro, the Squadron® Sport is tuned for efficiency and versatility, making it an excellent addition to adventure motorcycles and off-road setups where controlled illumination is essential.

Beam Pattern

Driving Combo (Zone Pattern)
Designed as a primary driving light, this pattern provides a balanced combination of distance and spread. Recommended mounting is toward the center front of the vehicle to minimize glare from the hood, fender, dust, or fog.

Baja Designs Proprietary Technologies

• Limited Lifetime Warranty

• uService® – Replaceable lenses and optics

• ClearView® – Clean, usable beam pattern with no wasted light

• MoistureBlock™ – Waterproof, rainproof, and fully submersible

• CopperDrive® – LEDs driven at 100% for maximum efficiency

• 5000K Daylight Output – Natural color temperature to reduce eye fatigue

Technical Specifications (Per Light)

• Lumens: 3,162 (4 × Cree XP-G2 LEDs)

• Wattage / Current Draw: 26W / 2A

• Dimensions:

  • 77.9mm × 70.3mm × 77.9mm

  • (3.07″ × 2.77″ × 3.07″)

• Weight: 340 g

• LED Life Expectancy: 49,930 hours

• Front Lens: Hard-coated polycarbonate

• Housing: Powder-coated cast aluminum

• Bezel: Billet-machined aluminum

• Mounting Hardware & Bracket: Stainless steel

Durability & Protection Standards

• IP69K Rated – Waterproof and submersible up to 9 ft

• IK10 Compliant – High-impact resistance

• Exceeds MIL-STD-810G – Military-grade vibration and durability testing

• Built-in Overvoltage Protection

What’s Included

• 2 × Baja Designs Squadron Sport LED Lights

• Basic wiring harness (supplied separately)

• Inbuilt On/Off switch included with wiring harness

🔧 Optional Upgrade Available (On Request):

• Longer wiring harness with connectors and push-button switch

Ideal For

• Adventure motorcycles

• Off-road and touring vehicles

• Side, backup, and scene lighting applications

• Riders seeking compact size with proven Baja Designs performance
